Camera 1, Filter F187N

Notes: Paschen . See also Camera 2, Filter F187N and Camera 3, Filter F187N. Central wavelength: 1.8748 µm Mean wavelength: 1.8748 µm Peak wavelength: 1.8756 µm Wavelength range: 1.865-1.885 µm FWHM: 0.0191 µm Maximum throughput: 21.7% Central pixel fraction: 0.036

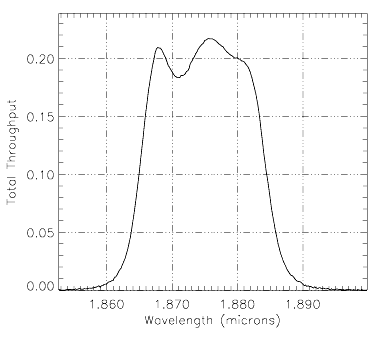

Figure A.15: NIC1, F187N Throughput

Camera 1, Filter F190N

Notes: Paschen continuum. See also Camera 2, Filter F190N and Camera 3, Filter F190N. Central wavelength: 1.8986 µm Mean wavelength: 1.8986 µm Peak wavelength: 1.8942 µm Wavelength range: 1.890-1.907 µm FWHM: 0.0178 µm Maximum throughput: 22.139% Central pixel fraction: 0.035

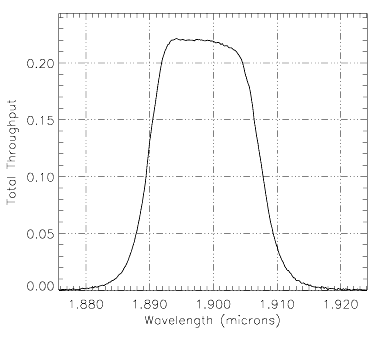

Figure A.16: NIC1, F190N Throughput
