Camera 3, Filter F187N

Notes: Paschen line. See also Camera 1, Filter F187N and Camera 2, Filter F187N. Central wavelength: 1.8748 µm Mean wavelength: 1.8748 µm Peak wavelength: 1.8756 µm Wavelength range: 1.865-1.884 µm FWHM: 0.0191 µm Maximum throughput: 22.56% Central pixel fraction: 0.439

Figure A.43: NIC3, F187N Throughput

Camera 3, Filter F190N

Notes: Paschen continuum. See also Camera 1, Filter F190N and Camera 2, Filter F190N. Central wavelength: 1.9003 µm Mean wavelength: 1.9003 µm Peak wavelength: 1.9004 µm Wavelength range: 1.892-1.908 µm FWHM: 0.0178 µm Maximum throughput: 24.191% Central pixel fraction: 0.434

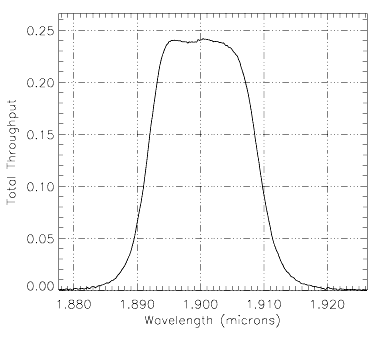

Figure A.44: NIC3, F190N Throughput
