Camera 2, Filter F190N

Notes: Paschen continuum. See also Camera 1, Filter F190N and Camera 3, Filter F190N, Central wavelength: 1.9003 µm Mean wavelength: 1.9003 µm Peak wavelength: 1.9004 µm Wavelength range: 1.892-1.908 µm FWHM: 0. 0177µm Maximum throughput: 25.697% Central pixel fraction: 0.100

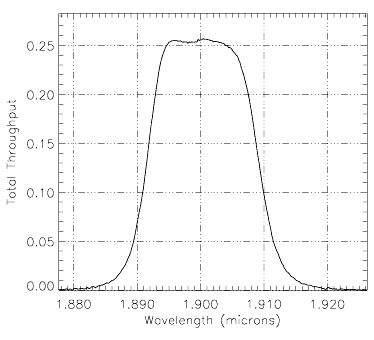

Figure A.25: NIC2, F190N Throughput

Camera 2, Filter F204M

Notes: Methane band. Thermal background important. Central wavelength: 2.0353 µm Mean wavelength: 2.0356 µm Peak wavelength: 2.0634 µm Wavelength range: 1.98-2.08 µm FWHM: 0.1043 µm Maximum throughput: 28.261% Central pixel fraction: 0.089

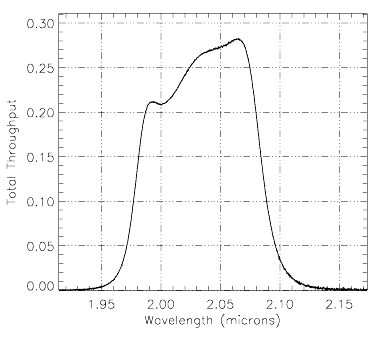

Figure A.26: NIC2, F204M Throughput
