Camera 2, Filter F187N

Notes: Paschen . See also Camera 1, Filter F187N and Camera 3, Filter F187N. Central wavelength: 1.8740 µm Mean wavelength: 1.8740 µm Peak wavelength: 1.8746 µm Wavelength range: 1.864-1.884 µm FWHM: 0.0194 µm Maximum throughput: 24.585% Central pixel fraction: 0.102

Figure A.23: NIC2 F187N Throughput

Camera 2, Filter F187W

Notes: Thermal Background important. Central wavelength: 1.8708 µm Mean wavelength: 1.8723 µm Peak wavelength: 1.8930 µm Wavelength range: 1.75-2.0 µm FWHM: 0. 2448 µm Maximum throughput: 24.079% Central pixel fraction: 0.103

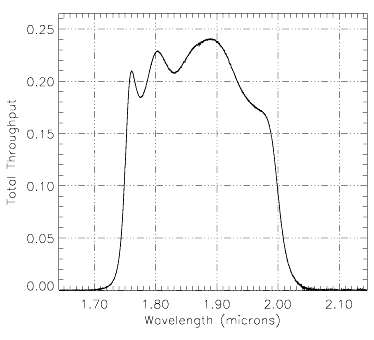

Figure A.24: NIC2, F187W Throughput
