Camera 1, Filter F166N

Notes: [Fe II] continuum. See also Camera 3, Filter F166N. Central wavelength: 1.6607 µm Mean wavelength: 1.6607 µm Peak wavelength: 1.6624 µm Wavelength range: 1.652-1.668 µm FWHM: 0.0170 µm Maximum throughput: 19.895% Central pixel fraction: 0.045

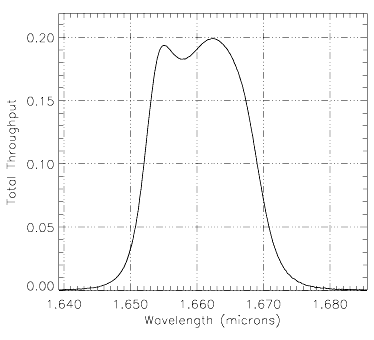

Figure A.13: NIC1, F166N Throughput

Camera 1, Filter F170M

Notes: See also Camera 2, Filter F171M. Central wavelength: 1.7055 µm Mean wavelength: 1.7066 µm Peak wavelength: 1.7885 µm Wavelength range: 1.6-1.8 µm FWHM: 0.2025 µm Maximum throughput: 22.517% Central pixel fraction: 0.043

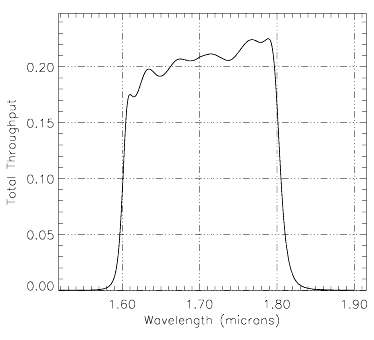

Figure A.14: NIC1, F170M Throughput
