Camera 1, Filter F164N

Notes: [Fe II] line. See also Camera 3, Filter F164N. Central wavelength: 1.6460 µm Mean wavelength: 1.6460 µm Peak wavelength: 1.6476 µm Wavelength range: 1.636-1.655 µm FWHM: 0.0173 µm Maximum throughput: 0.0173% Central pixel fraction: 0.046

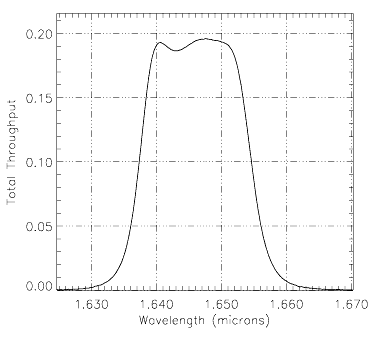

Figure A.11: NIC1, F164N Throughput

Camera 1, Filter F165M

Notes: H2O continuum. See also Camera 2, Filter F165M. Central wavelength: 1.6478 µm Mean wavelength: 1.6488 µm Peak wavelength: 1.7085 µm Wavelength range: 1.54-1.74 µm FWHM: 0.1985 µm Maximum throughput: 22.12% Central pixel fraction: 0.046

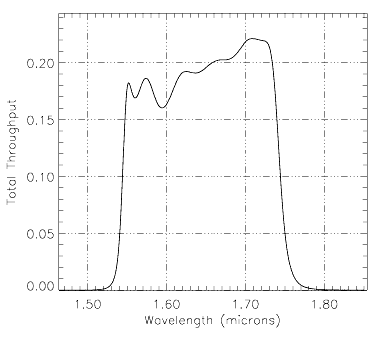

Figure A.12: NIC1, F165M Throughput
