Camera 3, Filter F160W

Notes: Minimum background. See also Camera 1, Filter F160W and Camera 2, Filter F160W. Central wavelength: 1.6036 µm Mean wavelength: 1.6079 µm Peak wavelength: 1.7725 µm Wavelength range: 1.4-1.8 µm FWHM: 0.3989 µm Maximum throughput: 23.465% Central pixel fraction: 0.474

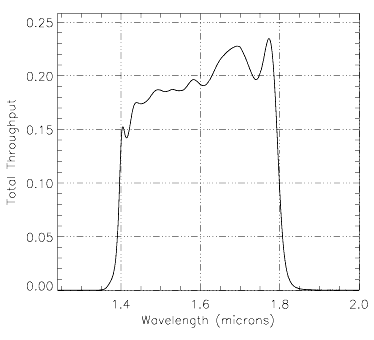

Figure A.39: NIC3, F160W Throughput

Camera 3, Filter F164N

Notes: [Fe II] line. See also Camera 1, Filter F164N. Central wavelength: 1.6460 µm Mean wavelength: 1.6460 µm Peak wavelength: 1.6476 µm Wavelength range: 1.637-1.655 µm FWHM: 0.0173 µm Maximum throughput: 20.234% Central pixel fraction: 0.471

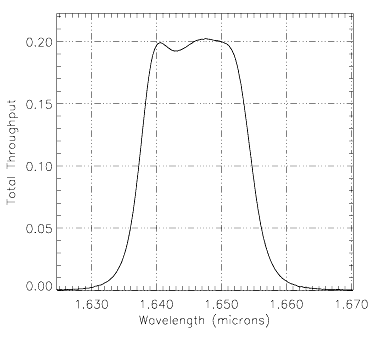

Figure A.40: NIC3, F164N Throughput
