Camera 2, Filter F160W

Notes: Minimum background. See also Camera 1, Filter F160W and Camera 3, Filter F160W. Central wavelength: 1.6037 µm Mean wavelength: 1.6080 µm Peak wavelength: 1.7720 µm Wavelength range: 1.4-1.8 µm FWHM: 0.4010 µm Maximum throughput: 25.236% Central pixel fraction: 0.136

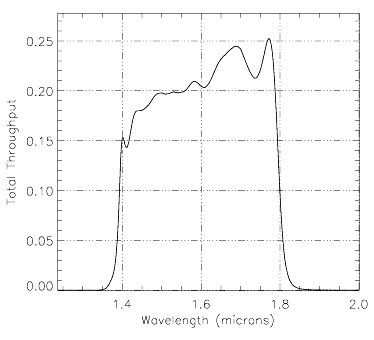

Figure A.19: NIC2, F160W Throughput

Camera 2, Filter F165M

Notes: Planetary continuum. See also Camera 1, Filter F165M. Central wavelength: 1.6511 µm Mean wavelength: 1.6521 µm Peak wavelength: 1.7135 µm Wavelength range: 1.54-1.74 µm FWHM: 0.1984 µm Maximum throughput: 25.247% Central pixel fraction: 0.127

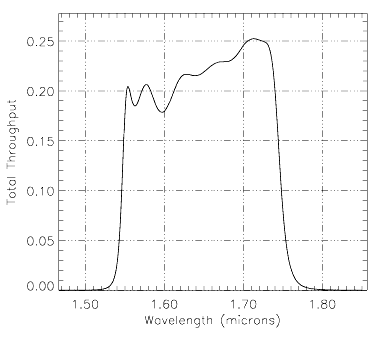

Figure A.20: NIC2, F165M Throughput
