Camera 1, Filter F145M

Notes: H2O band. Central wavelength: 1.4546 µm Mean wavelength: 1.4558 µm Peak wavelength: 1.5100 µm Wavelength range: 1.35-1.55 µm FWHM: 0.1963 µm Maximum throughput: 18.233% Central pixel fraction: 0.057

Figure A.9: NIC1, F145M Throughput

Camera 1, Filter F160W

Notes: Minimum background. See also Camera 2, Filter F160W and Camera 3, Filter F160W. Central wavelength: 1.6028 µm Mean wavelength: 1.6071 µm Peak wavelength: 1.7725 µm Wavelength range: 1.4-1.8 µm FWHM: 0.3989 µm Maximum throughput: 22.395% Central pixel fraction: 0.049

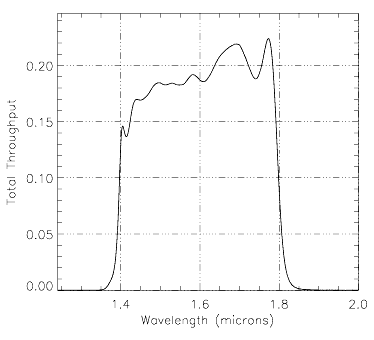

Figure A.10: NIC1, F160W Throughput
