Space Telescope Imaging Spectrograph Instrument Handbook for Cycle 14

F25CIII-NUV-MAMA

---

Description

The F25CIII filter with the NUV-MAMA provides narrow band imaging of the C III] 1907 + 1909 Å feature.

Recommended Uses

C III] imaging.

Pivot (Å)	FWHM (Å)	AB mag zeropoint	Speak	B	R80 (arcsec)	Flux in central pixel
1989.5	173.5	19.313	1.05e+13	207.6	0.23	10%

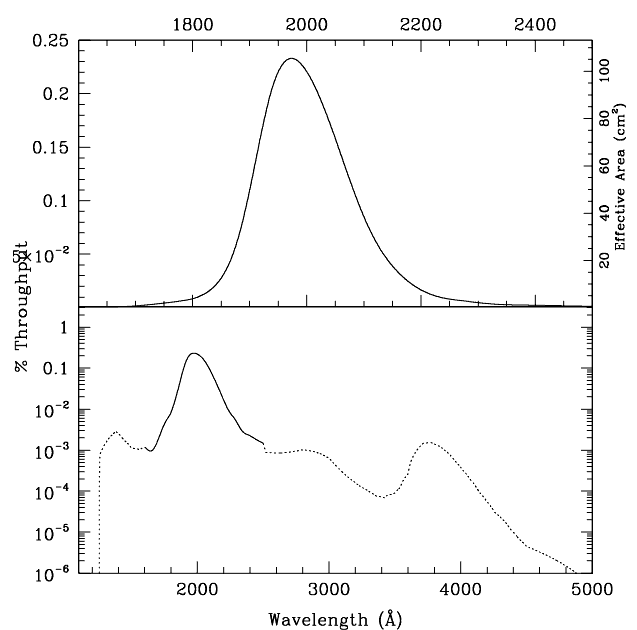

Figure 14.55: F25CIII NUV-MAMA Integrated System Throughput and Redleak




Table 14.22: Throughput and Sensitivity for F25CIII NUV-MAMA

l	Sensitivity	Throughput %
1750.	1.74E11	0.00
1800.	3.68E11	0.01
1850.	1.27E12	0.03
1900.	4.84E12	0.11
1950.	9.54E13	0.21
2000.	9.94E13	0.22
2050.	7.36E12	0.16
2100.	4.14E12	0.09
2150.	1.96E12	0.04
2200.	8.65E11	0.02
2250.	4.25E11	0.01

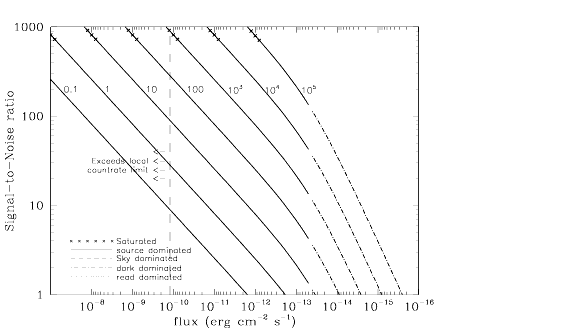

Figure 14.56: Point Source S/N vs. V+AB for the F25CIII NUV-MAMA mode. Curves are labeled by required exposure time (sec).

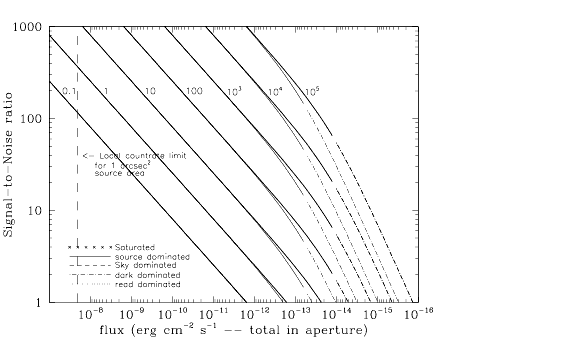

Figure 14.57: Extended Source S/N vs. V+AB for the F25CIII NUV-MAMA mode. Top curves are for an area of 0.2 arcsec²; bottom curves are for 1 arcsec². Average sky assumed. Curves are labeled by required exposure time (sec).




Table 14.23: Radial Profile for F25CIII*

Radius			Fraction of Energy Encircled
Pixels	Arcsec	intensity
1	0.024	4.859e-02	0.173
2	0.037	3.660e-02	0.284
2	0.049	2.557e-02	0.392
3	0.073	9.899e-03	0.528
4	0.098	3.609e-03	0.598
5	0.122	1.832e-03	0.649
10	0.245	2.759e-04	0.753
15	0.367	1.339e-04	0.822
20	0.490	7.056e-05	0.873
25	0.613	4.358e-05	0.911
30	0.735	3.353e-05	0.944
40	0.980	1.002e-05	0.981

* See STIS ISR 2003-01.

Figure 14.58: Point Source PSF for F25CIII NUV-MAMA, 7."5 square (at pixel 741,402, log scaled, B-V=-0.04). Note PSF ghost ~45 pixels left of peak pixel and a few 10^-3 of the peak

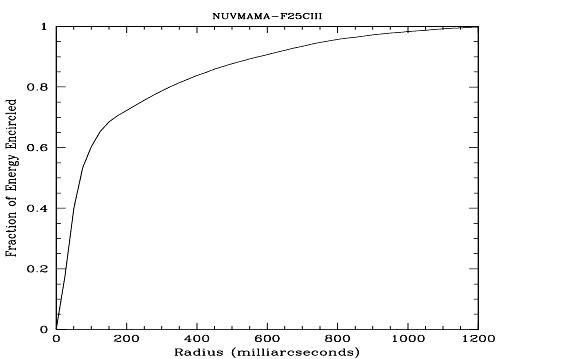

Figure 14.59: Point Source Encircled Energy for F25CIII NUV-MAMA

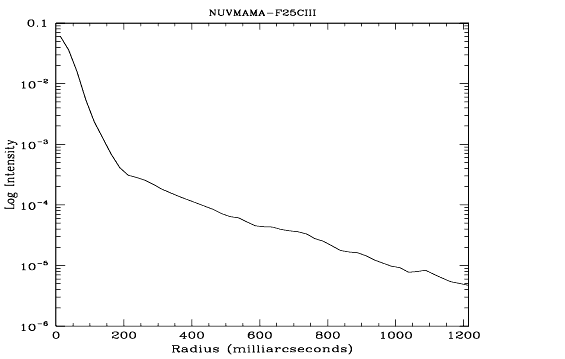

Figure 14.60: Point Source Intensity vs. Radius for F25CIII NUV-MAMA
