F25CN270-NUV-MAMA

Description

The F25CN270 filter with the NUV-MAMA provides medium bandwidth imaging near the 2798 Å MgII feature.

Recommended Uses

Continuum filter for MgII imaging.

Special Considerations

There is a substantial redleak in this filter. Sources with a red underlying continuum may be difficult to observe. Users should be careful to take into account the underlying continuum in estimating whether the observation will fall within the bright-object protection limits.

Pivot (Å) FWHM (Å)
AB mag zeropoint

S_peak

B
R₈₀ (arcsec) Flux in central pixel

2709.2

155.1

21.361

1.24e+14

202.3

0.17

14%

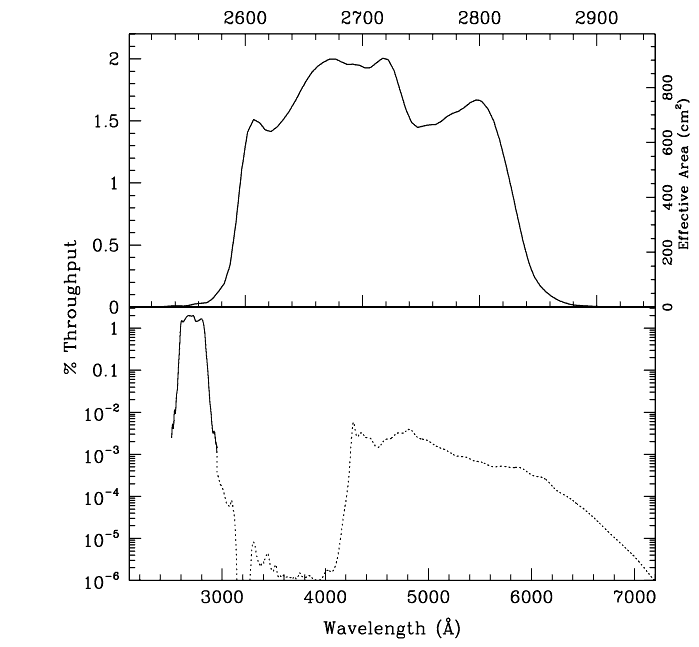

Figure 14.50: F25CN270 NUV-MAMA Integrated System Throughput and Redleak

Table 14.20: Throughput and Sensitivity for F25CN270 NUV-MAMA

l

Sensitivity

Throughput %

2575.

7.44E12

0.13

2600.

6.80E13

1.15

2625.

8.77E13

1.47

2650.

1.07E14

1.78

2675.

1.21E14

1.98

2700.

1.20E14

1.94

2725.

1.17E14

1.88

2750.

9.25E13

1.48

2775.

9.76E13

1.54

2800.

1.04E14

1.62

2825.

6.63E13

1.03

2850.

1.50E13

0.23

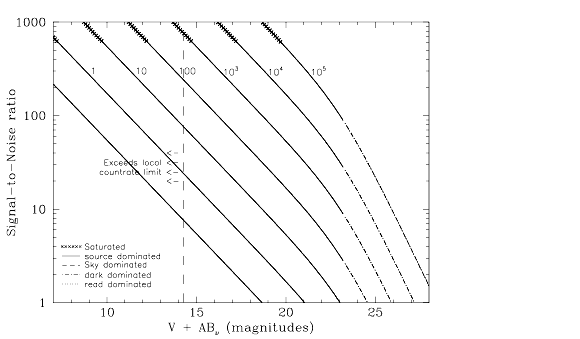

Figure 14.51: Point Source S/N vs. V+AB for the F25CN270 NUV-MAMA mode. Curves are labeled by required exposure time (sec).

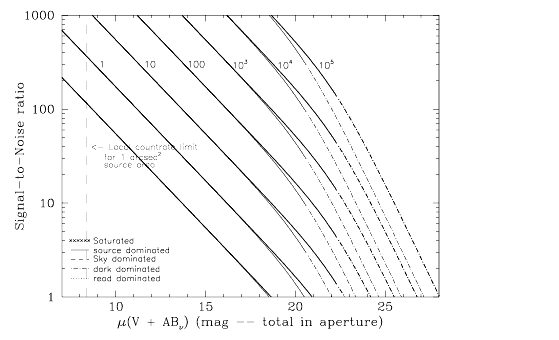

Figure 14.52: Extended Source S/N vs. V+AB for the F25CN270 NUV-MAMA mode. Top curves are for an area of 0.2 arcsec²; bottom curves are for 1 arcsec². Average sky assumed. Curves are labeled by required exposure time (sec).

Table 14.21: Radial Profile for F25CN270*

Radius

Fraction of Energy Encircled

Pixels

Arcsec

intensity

1

0.024

5.158e-02

0.240

2

0.037

2.953e-02

0.378

2

0.049

1.608e-02

0.504

3

0.073

5.260e-03

0.643

4

0.098

2.022e-03

0.708

5

0.122

1.215e-03

0.750

10

0.245

2.048e-04

0.854

15

0.367

9.848e-05

0.908

20

0.490

4.138e-05

0.942

25

0.613

1.817e-05

0.960

30

0.735

1.440e-05

0.974

40

0.980

4.656e-06

0.994

* See STIS ISR 2003-01.

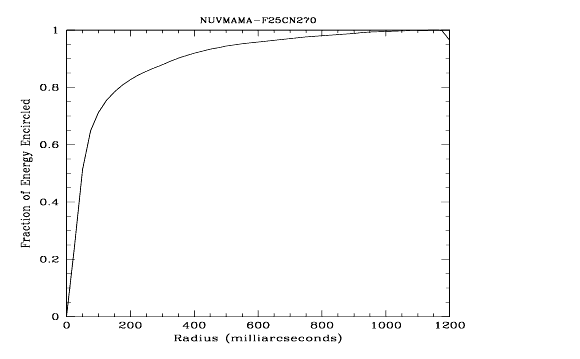

Figure 14.53: Point Source Encircled Energy for F25CN270 NUV-MAMA

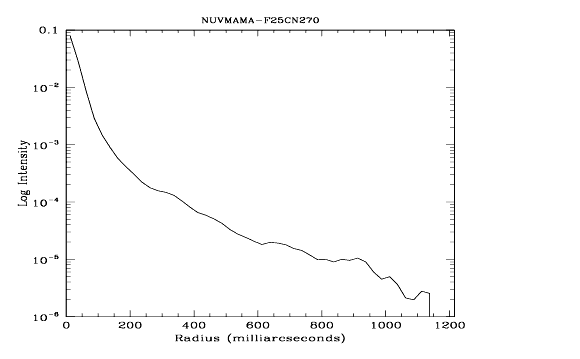

Figure 14.54: Point Source Intensity vs. Radius for F25CN270 NUV-MAMA
