Camera 3, Filter F212N

Notes: H2 line. Thermal background important. See also Camera 2, Filter F212N. Central wavelength: 2.1213 µm Mean wavelength: 2.1213 µm Peak wavelength: 2.1228 µm Wavelength range: 2.111-2.132 µm FWHM: 0.0208 µm Maximum throughput: 24.611% Central pixel fraction: 0.396

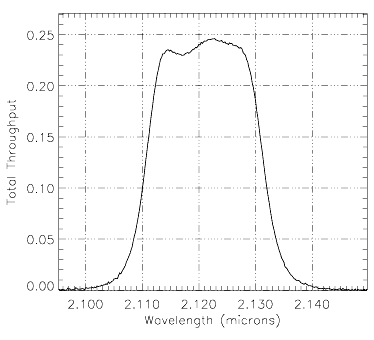

Figure A.47: NIC3, F212N Throughput

Camera 3, Filter F215N

Notes: H2 continuum. Thermal background important. See also Camera 2, Filter F215N. Central wavelength: 2.1487 µm Mean wavelength: 2.1487 µm Peak wavelength: 2.1562 µm Wavelength range: 2.138-2.158 µm FWHM: 0.0202 µm Maximum throughput: 23.867% Central pixel fraction: 0.391

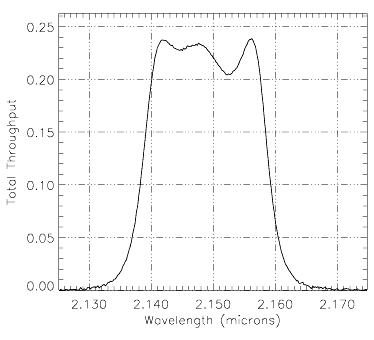

Figure A.48: NIC3, F215N Throughput
