Camera 2, Filter F237M

Notes: CO. Thermal background important. See also Camera 3, Filter F240M. Central wavelength: 2.3692 µm Mean wavelength: 2.3697 µm Peak wavelength: 2.4338 µm Wavelength range: 2.29-2.44 µm FWHM: 0.1540 µm Maximum throughput: 34.756% Central pixel fraction: 0.067

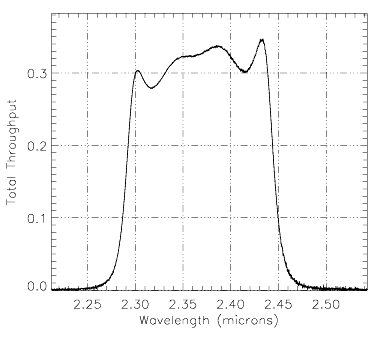

Figure A.33: NIC2, F237M Throughput

Camera 2, Polarizer POL0L

Notes: See Table 5.2 for characteristics of POL120L and POL240L. Central wavelength: 1.9999 µm Mean wavelength: 2.0009 µm Peak wavelength: 2.0750 µm Wavelength range: 1.89-2.1 µm FWHM: 0.2014 µm Maximum throughput: 15.546% Central pixel fraction: 0.092

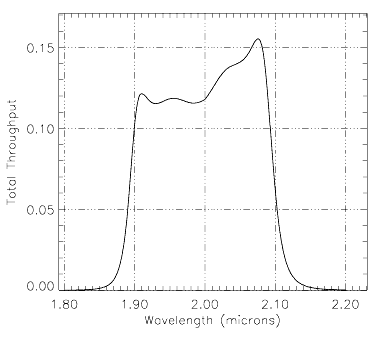

Figure A.34: NIC2, Long Polarizer Throughput
