F25ND5-FUV-MAMA
Description
The
F25ND5mode with the FUV-MAMA detector provides broad band imaging with an attenuation of 7 x 10-7. The field of view is 25 x 25 arcsec. The R80 and central pixel flux are unmeasured but assumed to be approximately the same as produced by theF25QTZfilter.Recommended Uses
Recommended for broad-band imaging of objects too bright by about a factor of 106 to meet FUV-MAMA BOP limits.
Special Considerations
At FUV wavelengths the attenuation is closer to a factor of 106 rather than the nominal 105, but the attenuation factor decreases at longer wavelengths, so special care should be taken for red sources. To make an accurate prediction of the expected count rate, observers should use a good approximation of the source spectrum as input for the STIS ETC.

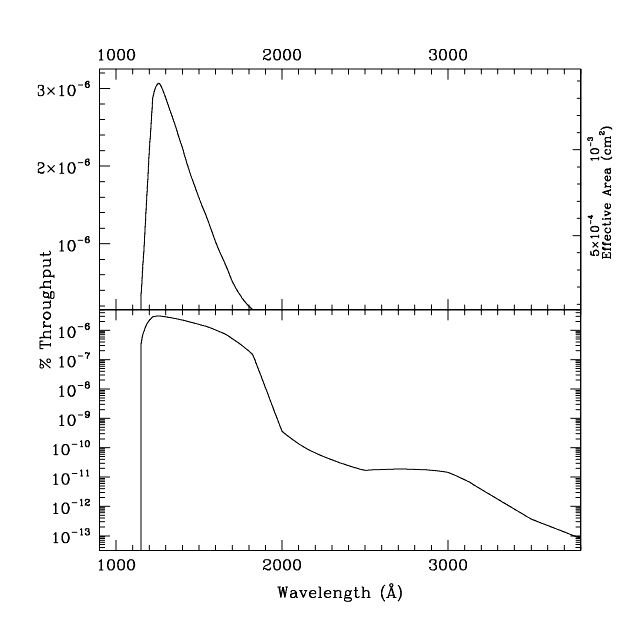

Figure 14.74: F25ND5 FUV-MAMA Integrated System Throughput and Redleak
Table 14.29: Throughput and Sensitivity for F25ND5 FUV-MAMA

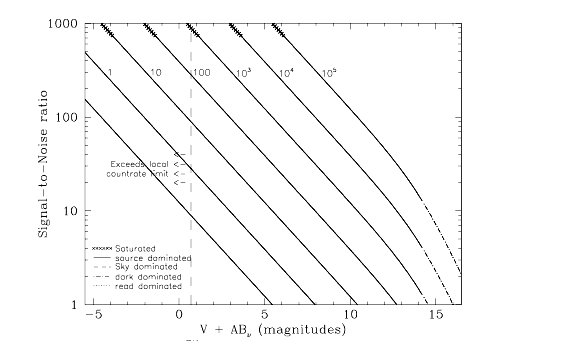

Figure 14.75: Point Source S/N vs. V+ABfor the F25ND5 FUV-MAMA mode. Curves are labeled by required exposure time (sec).

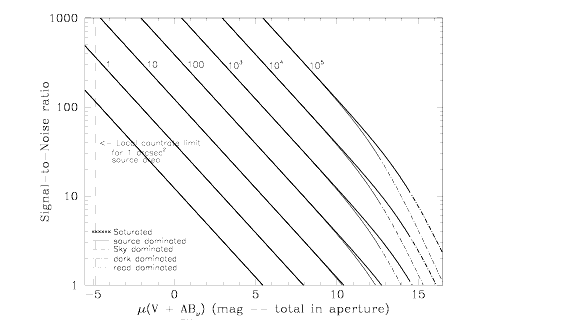

Figure 14.76: Extended Source S/N vs. V+AB
|
|||||
|
