0.2X0.05ND Aperture

---

Description

Supported neutral-density-filtered slit for use with bright objects with the echelle gratings. The dex ND factor is 2.0.

Special Considerations

Observations with this slit require a prior PEAKUP. This aperture can also be used with the CCD for ACQ/PEAKs.

Table 13.31: 0.2X0.05ND Throughputs

	% Throughput
1150	0.18
1350	0.40
1550	0.49
1750	0.45
1950	0.38
2150	0.41
2350	0.47
2550	0.56
2750	0.62
2950	0.63
3150	0.67

Aperture	Projected Length (arcsec) (MAMA E-modes)	Width (arcsec)
0.2X0.05ND	0.2	0.05

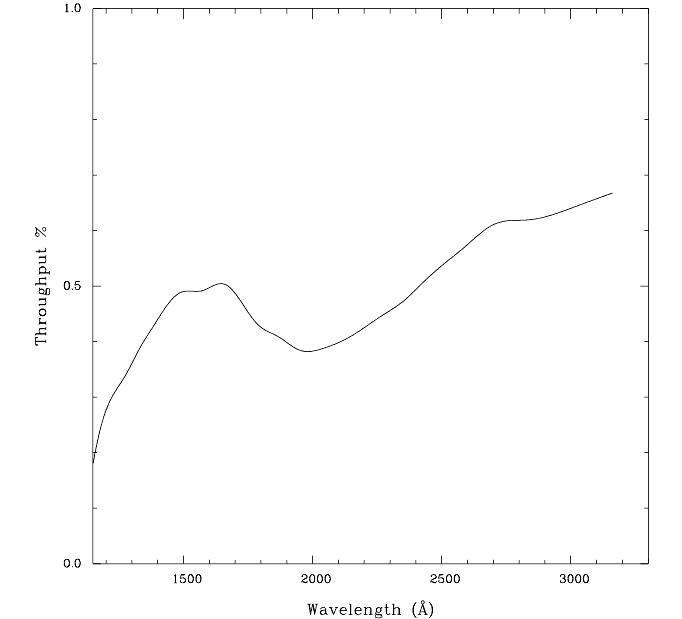

Figure 13.80: 0.2X0.05ND Aperture Throughput as a Function of Wavelength
