0.1X0.03 Aperture

---

Description

This slit provides the highest spectral resolution of any STIS slit and is restricted to use with the MAMA echelle gratings. Tests during ground calibration with this slit to obtain MAMA exposures of a mono-isotopic platinum lamp source produced resolving powers in excess of 200,000.

Special Considerations

Observations with this slit require a prior PEAKUP. The peakup is performed in two stages - first with the 0.2X0.09 aperture (or one of the small neutral density apertures), and then with the 0.1X0.03 aperture.

Table 13.28: 0.1X0.03 Throughputs

	% Throughput
1200	19.9
1800	31.4
2400	36.0
3000	36.3
6000	27.0

Aperture	Projected Length (arcsec)	Width (arcsec)
0.1X0.03	0.1	0.025

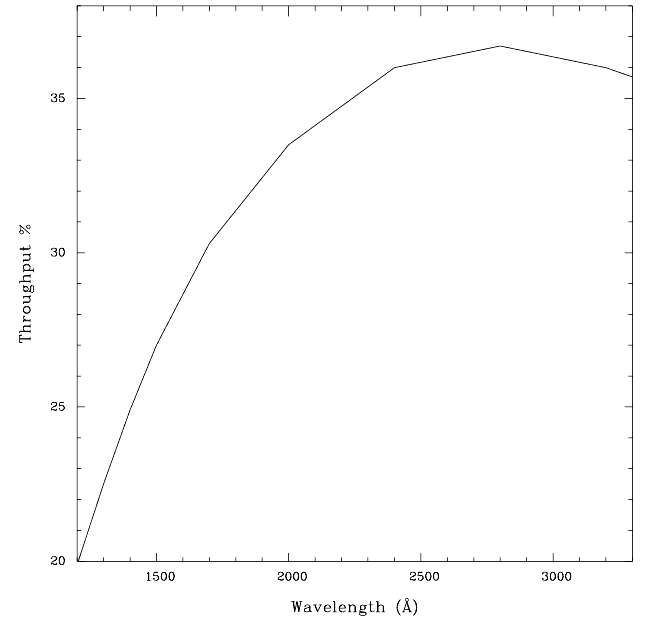

Figure 13.75: 0.1X0.03 Aperture Throughput as a Function of Wavelength
